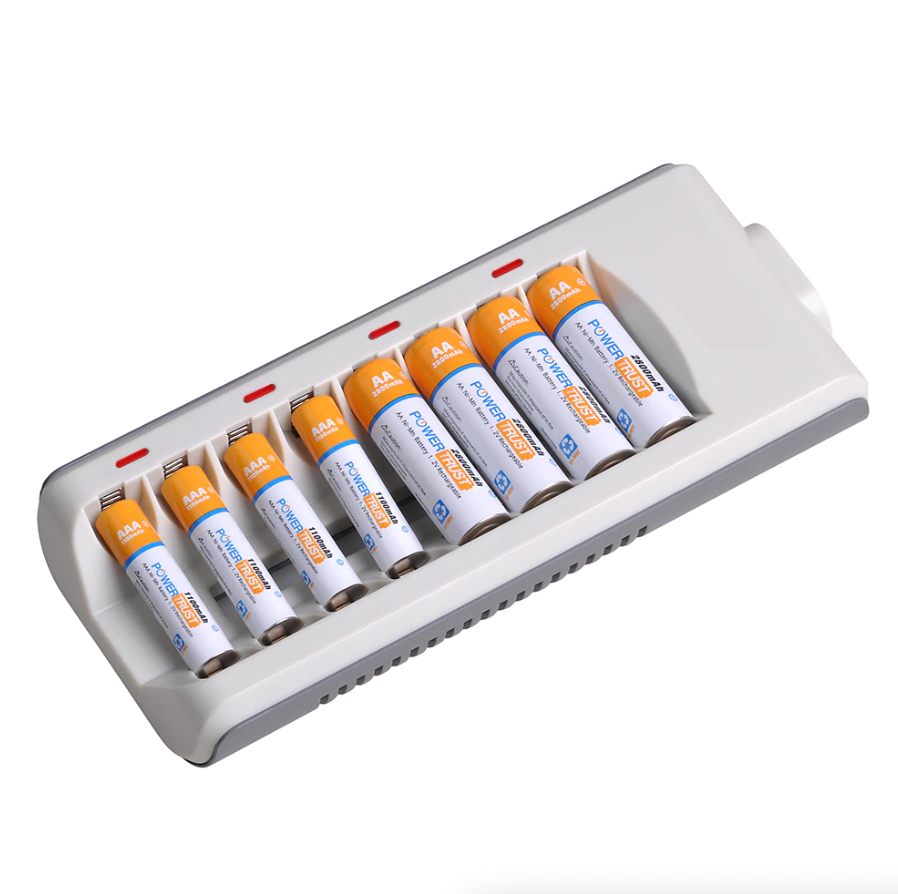

Prime Goods 8 Slot Battery Charger for Ni-MH Ni-CD AA AAA Rechargeable Batteries Fast Charge - Gray

Highlights

[ADVANCED]
Advanced fire-proof material has been updated to this rechargeable aa aaa batteries charger - individual charger freely working for 1-8 Ni-MH Ni-Cd AA AAA rechargeable batteries.

[MULTI PORT]
8-Bay battery charger with smart LED to show its charging progress: Red Light-Charging; Green Light -Fully Charged; Red LED Flash: a bad battery or non-rechargeable batteries.

[INTELLIGENT]
Controlled by MCU automatically stop charging when detecting improper input voltage defective or short circuit or non rechargeable batteries.

[POLARITY PREVENTION]
Using -?V intellectual cut-off charging method automatically turn to trickle charge prevent the aa aaa rechargeable batteries from over-voltage over-current or over-heat.

[SAFETY]
Constant current charging would protect the 1.2v batteries against current fluctuation and keep using the aa aaa rechargeable charger safely.

Specifications

Color?Gray
Materials: ABS + PC Fireproof Material
Size: 6.9 x 3 x 1.1 (inch)
Model Number: 8 slots 1.2V AA AAA Battery Charger
Input: 100-240V AC 50/60Hz
Output: AA-350mA8 AAA-200mA8
No Load Power Consumption: 1W MAX
Full Load power consumption: 5W MAX
Battery Charge Rate: >80%
Plug standard: USBatteries Not Included: Charger only

Features & Tips

Battery Charger - Upgraded

Compatible: All Brand AA and AAA nimh nicd rechargeable batteries (DO NOT charge alkaline or Lithium batteries)

Individual 8-Bay battery Charger:
Freely charge 1-8 pcs aa or aaa rechargeable batteries at one time.

Independent LED indicators:
Red Light on (charging); Green Light(fully charged); Red Flashing (bad or non-rechargeable batteries)

Gentle smart LED indicator shows the charging statues more comfortable light on night.

Auto shut off when charging complete protect the batteries from over-charge.

Refresh your low voltage batteries and detect bad batteries when charging.

AC 100-240V input global usage come with a AC plug cable charging faster and less power loss than USB cable charging.

Reasonable Circuit Layout - Worldwide Usage

Advanced MCU Control With Reasonable Circuit Layout

Negative delta V (- ?V) cut-off function automatically cut off when fully charged

Input and Output:
Input: AC 100-240V AC 50/60Hz
Output: DC 2.4V 1000mA
0.4V output voltage more than most similar charger means faster for charging

Charging Time Table:
1 to 8pcs AAA 500-1200mAh: 1.5 - 4 hours
1 to 8pcs AA 1300-2800mAh: 1.5 - 8 hours

Trickle Charge Mode

Unique Trickle Charge

Adopting -?V intellectual cut-off charging method automatically turn to trickle charge overheat-detection to prevent over-charging short circuit protection and reverse polarity protection.

Attention:

• Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.

• Using environment: 0? to 40? it is normal phenomenon that the battery is warm.
